Automatic Fresh meat slicer
Automatic Fresh meat slicer Automatic Fresh meat slicer Automatic Fresh meat slicer Automatic Fresh meat slicer Automatic Fresh meat slicer

Automatic Fresh meat slicer

Product Attributes :

Model:  HKQPJ500-VIII(Double)

Belt width:  2×160mm (双通道)

Belt speed:  3~18m/min

Max. Cutting width:  130mm

Cutting thickness:  2~50mm

Cutting speed: 120pcs/min

Input/Output height:  1000±50mm

Power : 2.25kw

Overall dimension : 2154×1141×1215mm

Product Description



Product brief introduction

Fresh meat horizontal cutting, accurate cutting thickness, smooth cutting surface; Double channel operation, convenient, easy to operate, cutting specifications can be adjusted; Multi-layer cutting can be realized, greatly improving the utilization rate of meat, and the weight and thickness of each layer can be controlled; The whole machine is made of 304 stainless steel and food grade plastic; Imported electrical parts are selected, the whole machine is waterproof, and can be washed with electricity.



Parameter

​Model

HKQPJ500-VIII

Belt width 2*160mm
Belt speed 3~18m/min
Max. Cutting width 130mm
Cutting thickness 2~50mm
Power 1.65kw
Cutting efficiency 120piece/min
Overall dimension 2160*1250*1300mm



Product features and applications

Automatic slicer



1.Unique pressure control system, accurate and reasonable knife group combination, perfect conveyor belt and knife speed ratio, so that the chicken breast after cutting to ensure integrity.

2.The weight of the finished meat slices after cutting is within a controllable range, ensuring the original shape of the raw meat, cutting multiple layers can achieve equal division and equal weight cutting, the yield stability is extremely high, greatly saving labor.

Meat slicer

3.The driving mode is the electric drum drives the belt to rotate, the whole machine has no chain and gear, the performance is more stable, the operation is more convenient, the maintenance is easier, the belt is quickly disassembled and installed, and the cleaning is no dead Angle.

Fresh meat slicerAutomatic slicer

4.Suitable for uniform cutting of chicken breast, beef, pork, fish and other fresh meat.

Meat slicer

Product details introduced multi-directional display

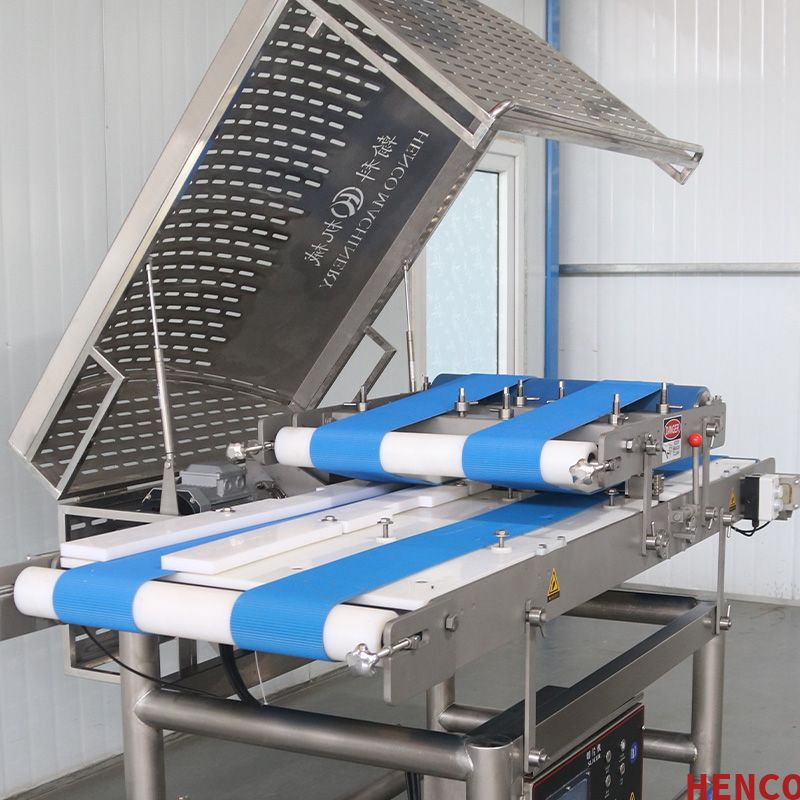

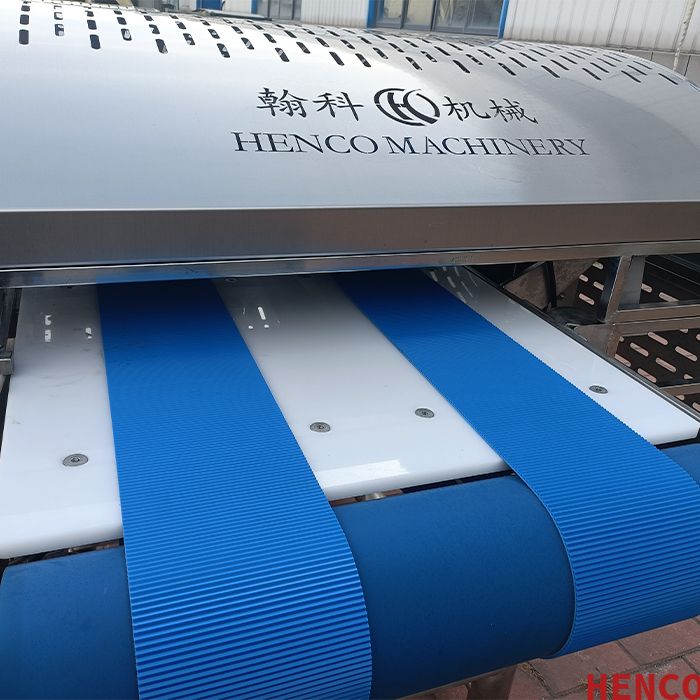

1.Roller motor drive imported from the United States, the whole machine without chain gear, the machine runs smoothly, no noise, no maintenance, extremely stable; This structure belt ring loading and unloading, more lightweight, fast loading and dismantling, more durable belt will not run off, cleaning no dead Angle.

Fresh meat slicer

2.Rivet blade, stainless steel toughness is very good, will not break, extremely sharp, cutting 50 to 80 tons of raw materials to replace once

Automatic slicer

3.Motor waterproof grade IP56, full speed operation 790 times /min, can be washed with water, warranty 1 year, bad replacement machine

Meat slicerFresh meat slicer

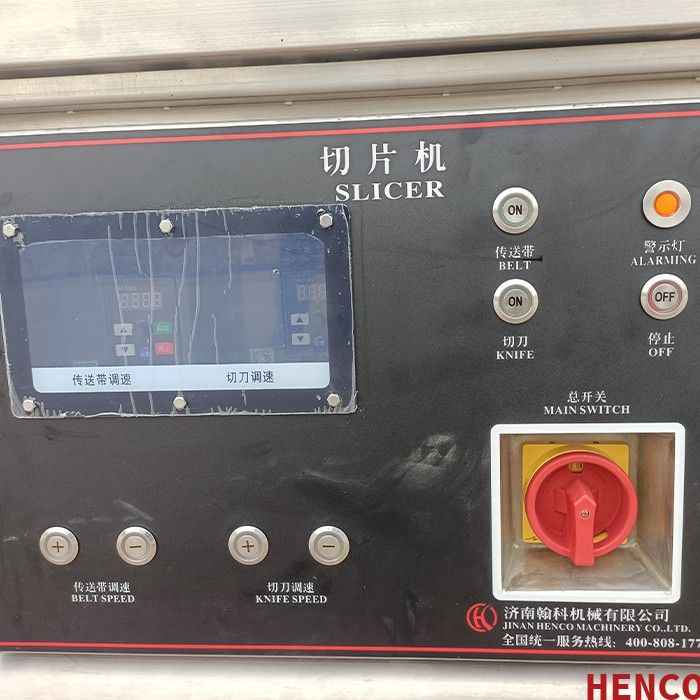

4.The Siemens inverter can adjust the knife and conveyor belt speed, and has a self-protection system, when the current and voltage are abnormal, the machine automatically stops and displays the fault code to avoid burning electrical parts and motors.

Automatic slicerMeat slicer

5.The knife set can be customized and can cut various shapes of meat such as heart-shaped chicken chops. The butterfly knife can cut into the size and shape that customers need.

Fresh meat slicerAutomatic slicer
