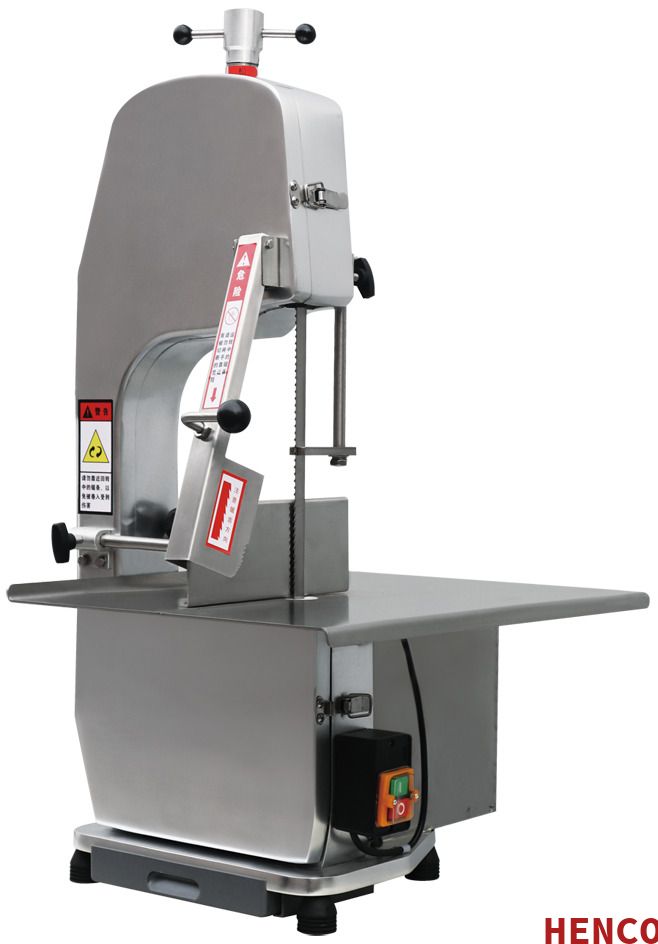

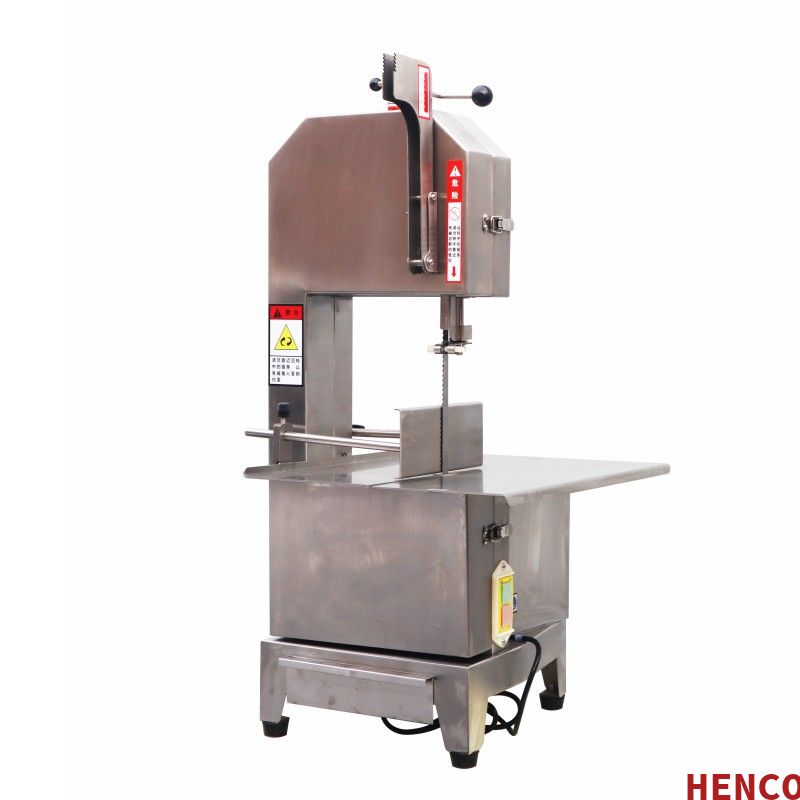

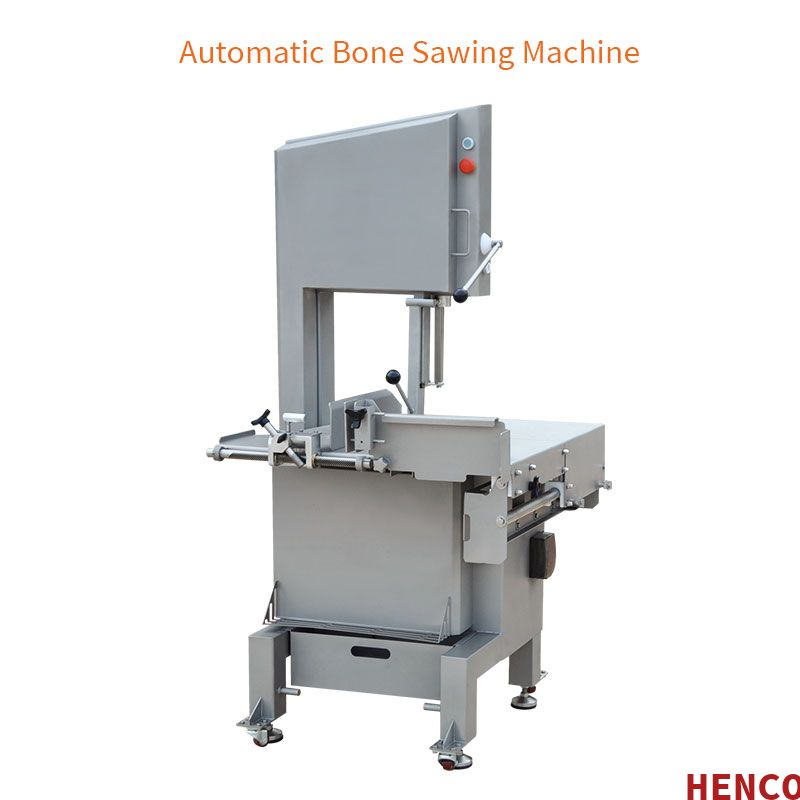

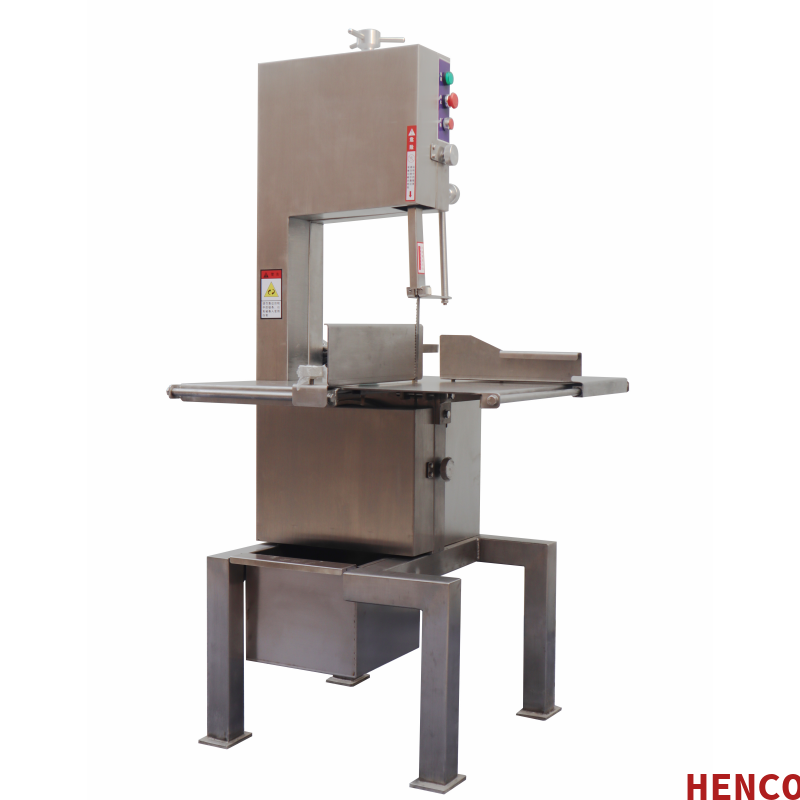

Automatic Bone Sawing Machine
Model : HKJGJ
Power: 2.2kw
Dimension : 700×650×1700mm
Product brief introduction
Bone sawing machine, composed of frame, motor, circular saw, horizontal table, electronic control board, suitable for all kinds of small and medium-sized animal bones, frozen meat, with fish bone, frozen fish, ice processing equipment.
Product parameters
SJC-360:
|
External dimensions: |
845X700X1735mm |
|
Through the height : |
360mm |
|
Through the width: |
282mm |
|
Height of table: |
918mm |
|
Size of table: |
845X700mm |
|
Saw blade specification: |
16X2495mm |
|
Specification of pulley: |
300mm |
|
Main motor power: |
2.2kw |
|
Rated speed of motor: |
1440r/min |
|
Saw blade linear speed: |
23m/s |
|
Emergency stop braking time: |
0.5s |
|
Whole machine weight: |
142Kg |
SJC-380:
|
External dimensions: |
800X700X1740mm |
|
Cutable dimension: |
The highest380mm,TheWidest300mm |
|
Saw blade specification: |
2490mm |
|
Size of table: |
800X700mm |
|
Whole machine weight: |
128Kg |
|
Speed of operation: |
1500m/min |
|
Electric machine: |
380V/1.5KW(50Hz) |
SJC-280:
|
Electric machine: |
Three phase 380V/1.1KW Single phase 220V/1.1KW(50Hz) |
|
Speed of operation: |
1100m/min |
|
Saw blade specification: |
1180mm |
|
Cutable dimension: |
The highest280mm,TheWidest200mm |
|
Size of table: |
600X430mm |
|
External dimensions: |
600mmX540mmX1500m |
|
Whole machine weight: |
65kg |
SJC-300:
|
Electric machine: |
Three phase 380V/1.5KW(50Hz) |
|
Speed of operation: |
1500m/min |
|
Saw blade specification: |
2100mm |
|
Cutable dimension: |
The highest300mm TheWidest250mm |
|
Size of table: |
690mmX600mm |
|
External dimensions: |
690mmX600mmX1550mm |
|
Whole machine weight: |
70kg |
SJC-250B/250M:
|
Electric machine: |
Three phase 380V/1750W Single phase 220V/750W,1100w(50Hz) |
|
Speed of operation: |
915m/min |
|
Saw blade specification: |
1650mm |
|
Cutable dimension: |
The highest250mm TheWidest180mm |
|
Size of table: |
500mmX350mm |
|
External dimensions: |
500mmX445mmX850mm |
|
Whole machine weight: |
40kg |
Product features and applications
1. Bone saw machine is suitable for all kinds of small and medium-sized animal bones, frozen meat, fish bone, frozen fish, ice processing.
2. For cutting small pieces of frozen meat and ribs.
3. Widely used in large-scale centralized food processing plants, slaughterhouses, meat processing plants and other places.

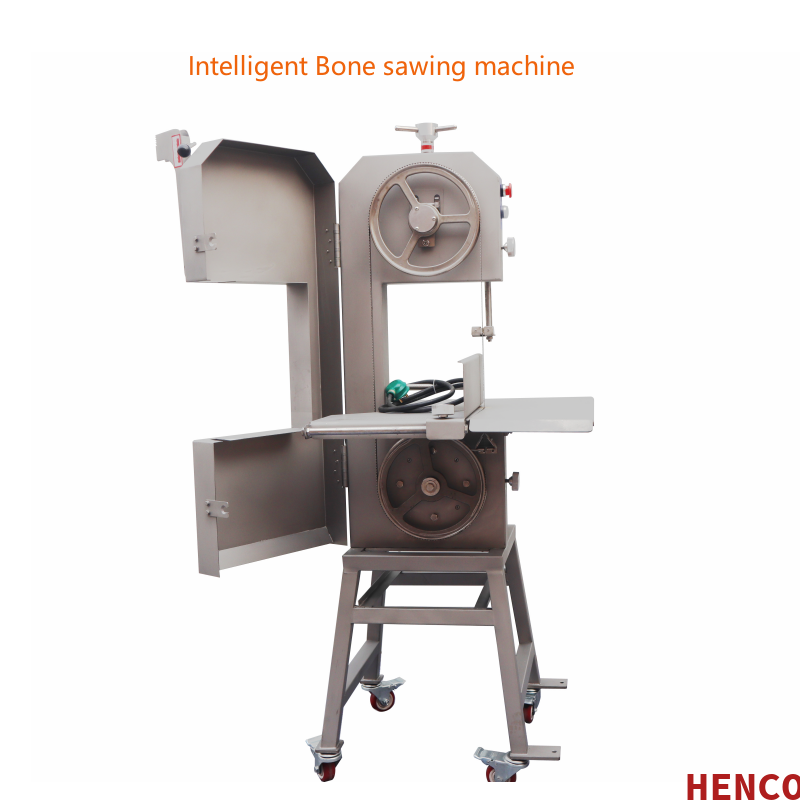

Product details introduced multi-directional display
