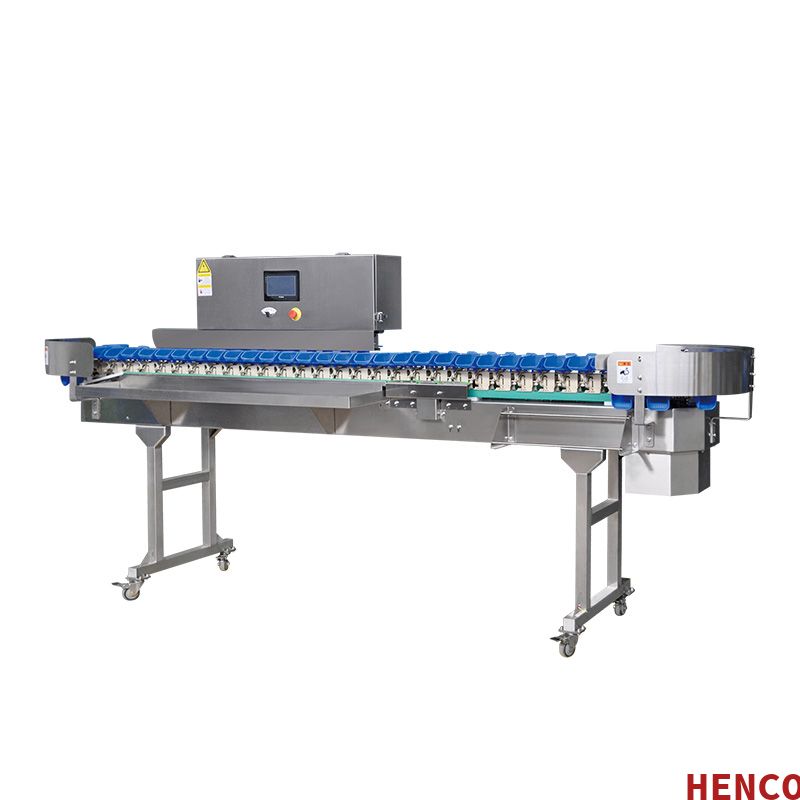

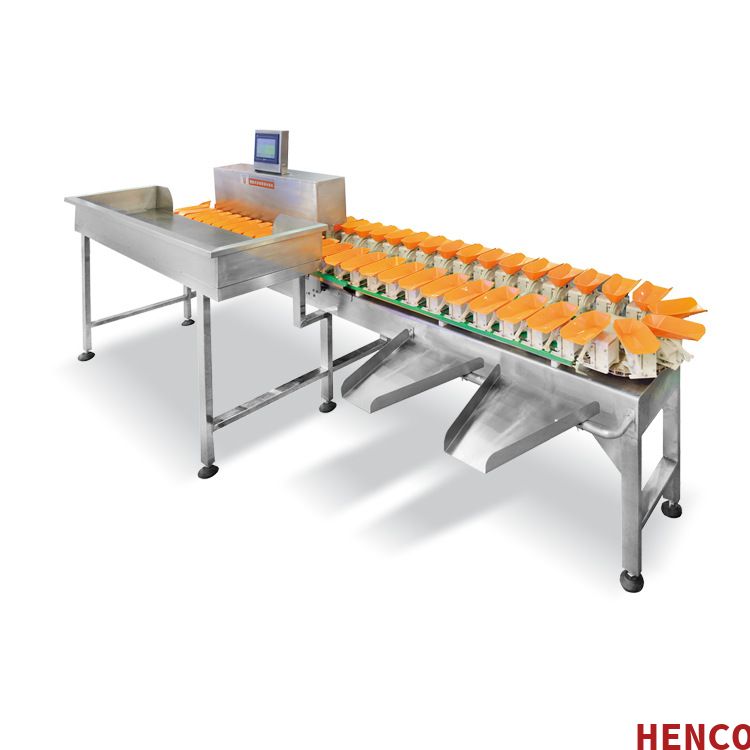

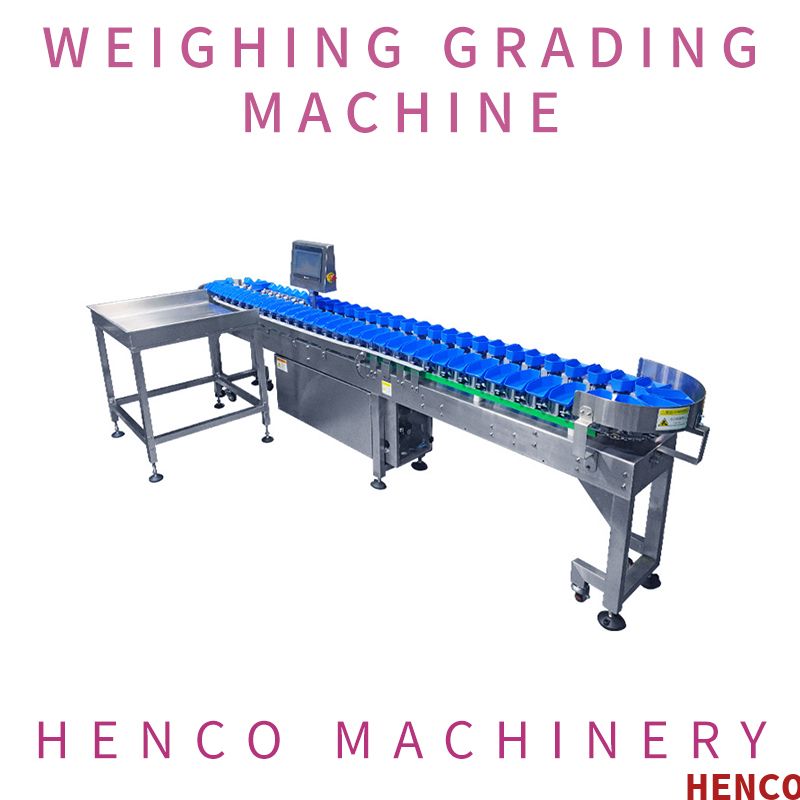

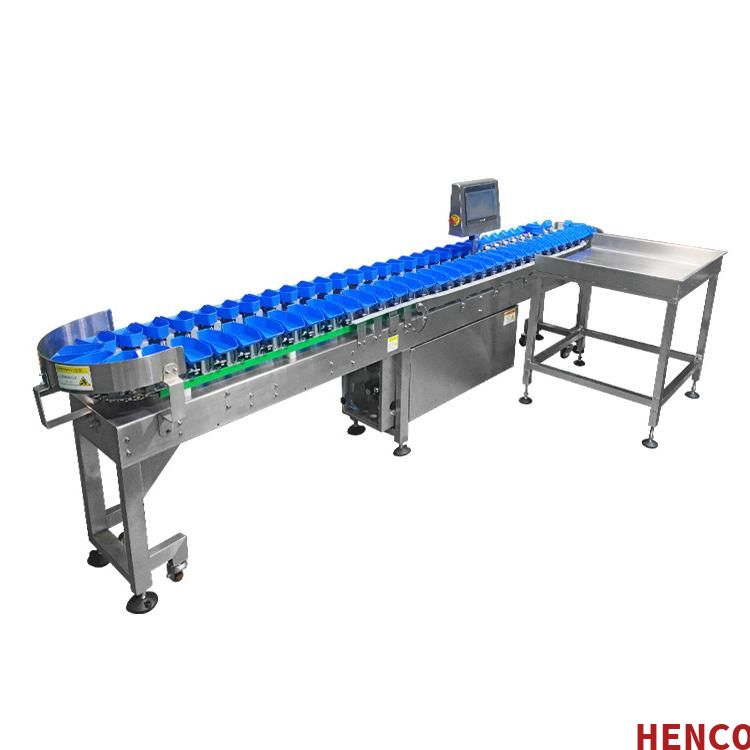

Weighing Grading Machine
Mainly used in segmented products such as chickens, ducks, geese, etc(pipa legs, wing middle, full wing, wing root, duck,Palm, Chicken Feet, Large Breast, Duck Gizzard, Two Section Wings)and Seafood.
Product Introduction
1.high-speed The equipment is guaranteed to use core components such as programmable controllers, frequency converters, and electromagnets Improved equipment operational stability.
2.high-precision Adopting the HBM weighing system imported from Germany, it ensures accurate data reading and high-end technical processing, ensuring high precision measurement of the equipment under high-speed operation, and controlling the error range within ± 0.5g.
3.Easy to operate Convenient to operate The perfect combination of PLC and HMI can store formulas of various levels and species Key operation.
4.reduce labor intensity The automatic feeding system of the elevator belt vibration feeding system only requires one person to assist the equipment.
Product Parameters
|
Model |
OYDE-f01-10 |
Power Supply |
220V/AC 0.2KW |
|
production capacity |
220-330 个/min |
error range |
±0.5g |
|
Exclusion accuracy |
98% |
material quality |
Complete machine 304 stainless steel |
|
Equipment weight |
300kg |
Max load |
0-10kg |
|
Equipment size |
L4300mm*W1000mm*H1200mm |
||
Electrical configuration:
|
Product Name |
specifications |
brand |
parameter |
number |
|
PLC |
40T |
Panasonic |
220V |
1 |
|
Load cell |
5KG |
HBM |
DC/5V |
1 |
|
Human Machine Interface |
Port 7 inches |
Siemens |
7 inches |
1 |
|
proximity switch |
PNP 24V |
PEPPERL FUCHS |
M18 |
1 |
|
Power motor |
/ |
SEW |
0.2KW |
1 |
|
Electromagnet (Level 7) |
/ |
SMC |
24v |
10 |

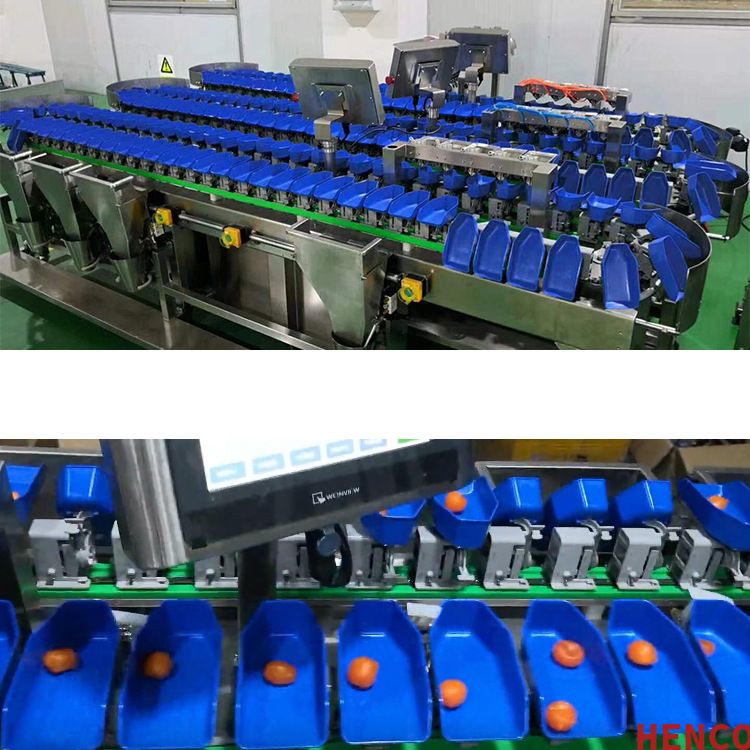

Product details Multi-directional display
